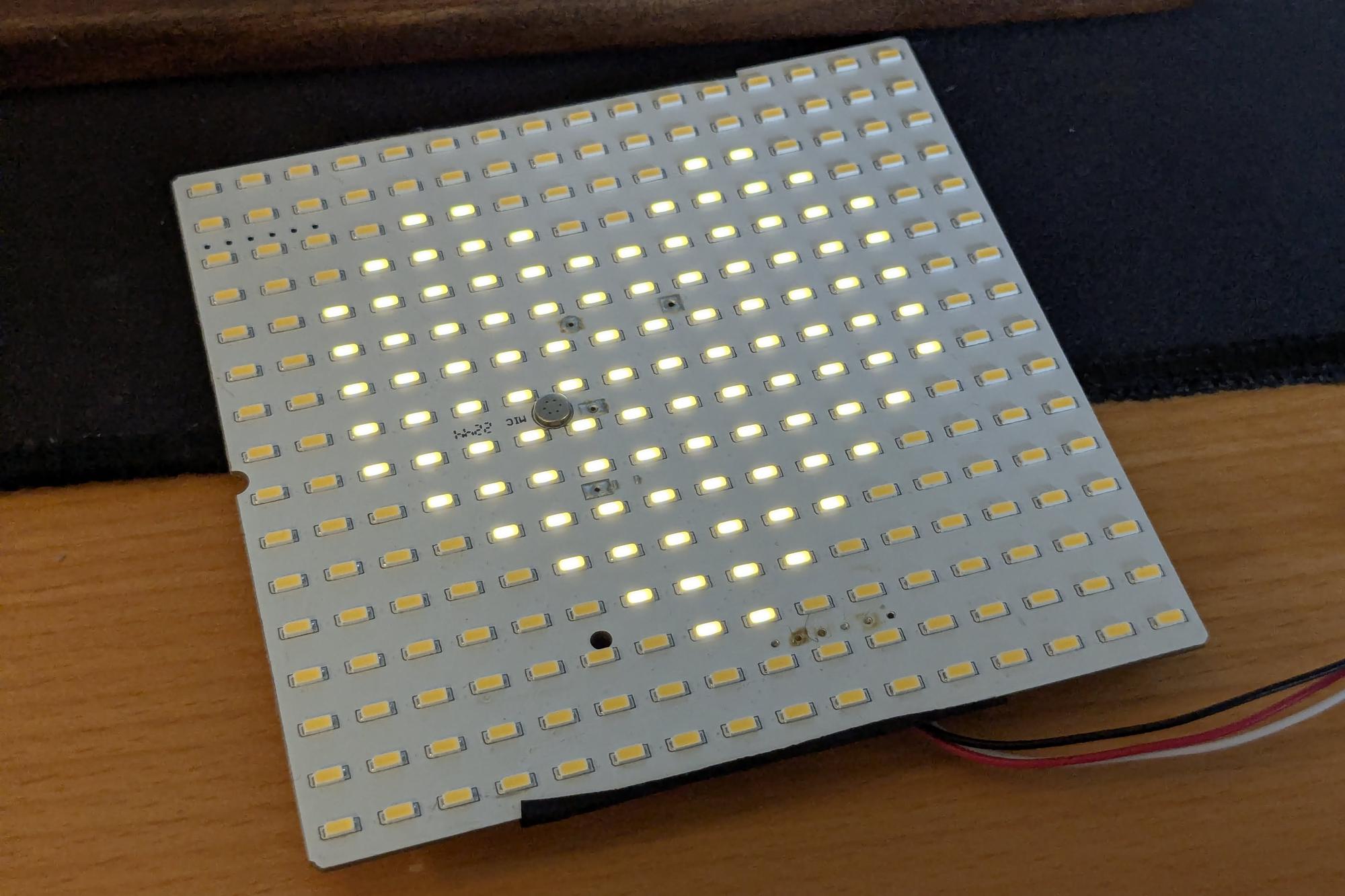

I found a couple of ikea frekvens LED matrix cubes from that teenage engineering collab in a thrift store in Vienna. They were cheap and I’d heard about people modding them. Plugged in, they provide possibly the most dissapointing lightshow I’ve seen:
Whatever electronics they’ve got in there, it’s doing a very simple job: Show a static frame of a pre-baked five frame looping animation. Monitor a microphone and progress the animation each time a loud sound occurs. Check two buttons on the back to turn the LEDs on or off, and switch between a few different animation sets.
That’s it. Nothing dynamic, nothing exciting. Why not make it just a bit more exciting?
A few existing projects:
I think my general goals for modding are something like:
So basically, I think I’m trying to prove what kind of product the cubes could be if the TE software engineers had done a proper job…

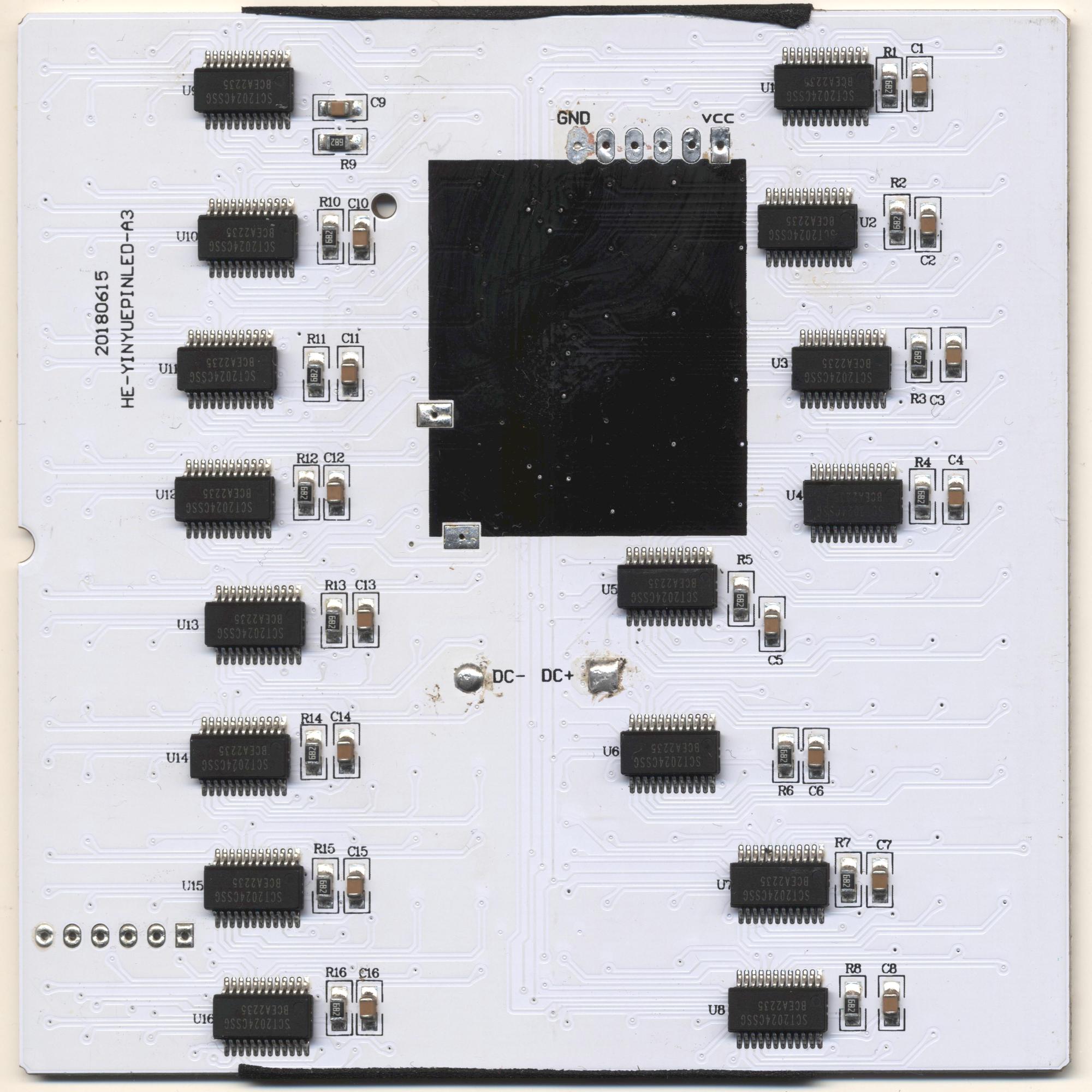

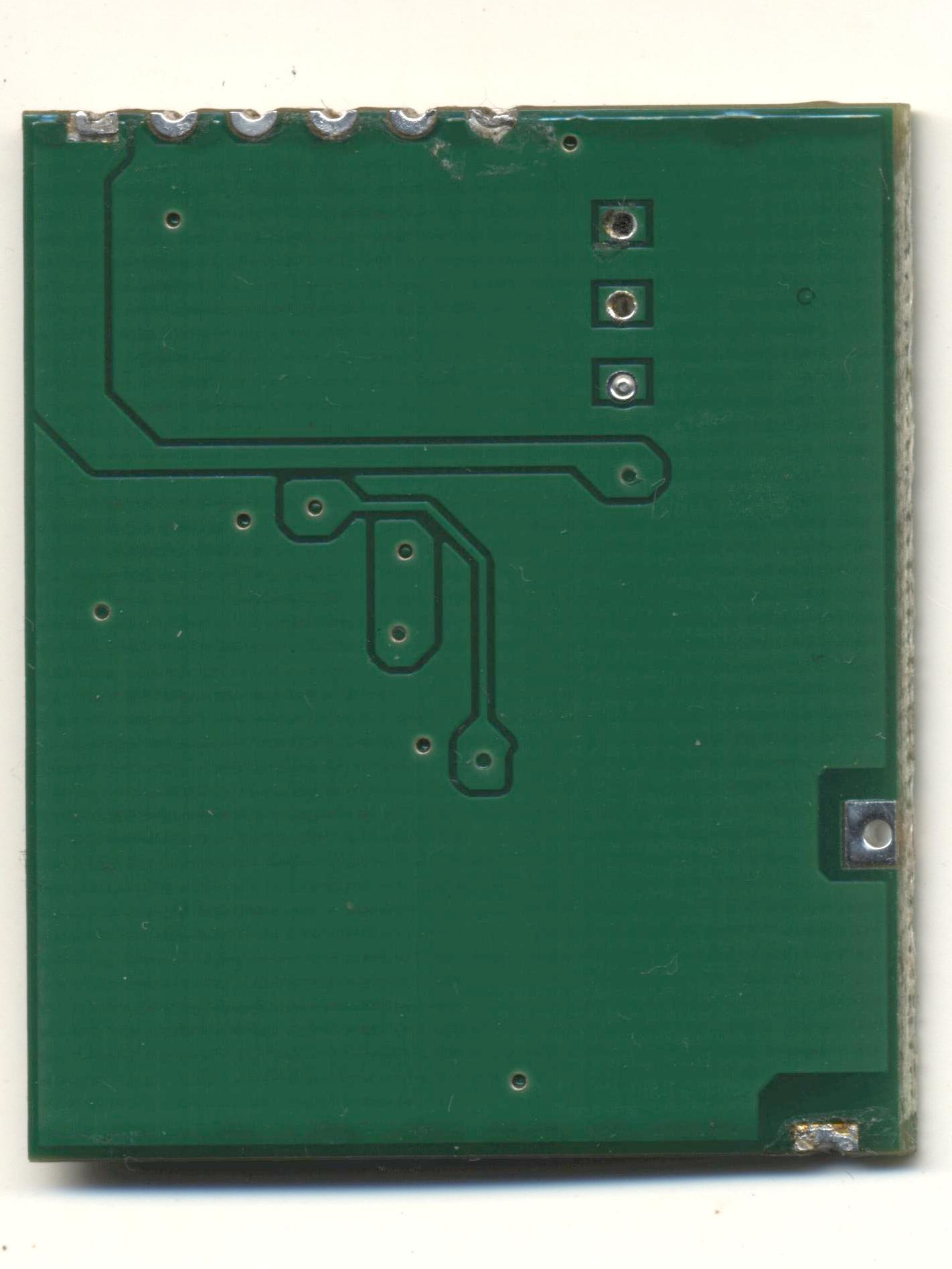

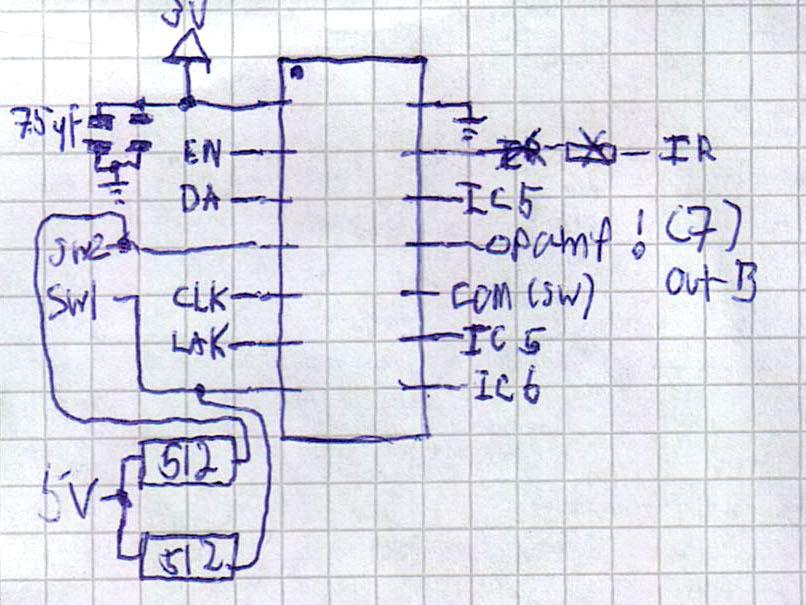

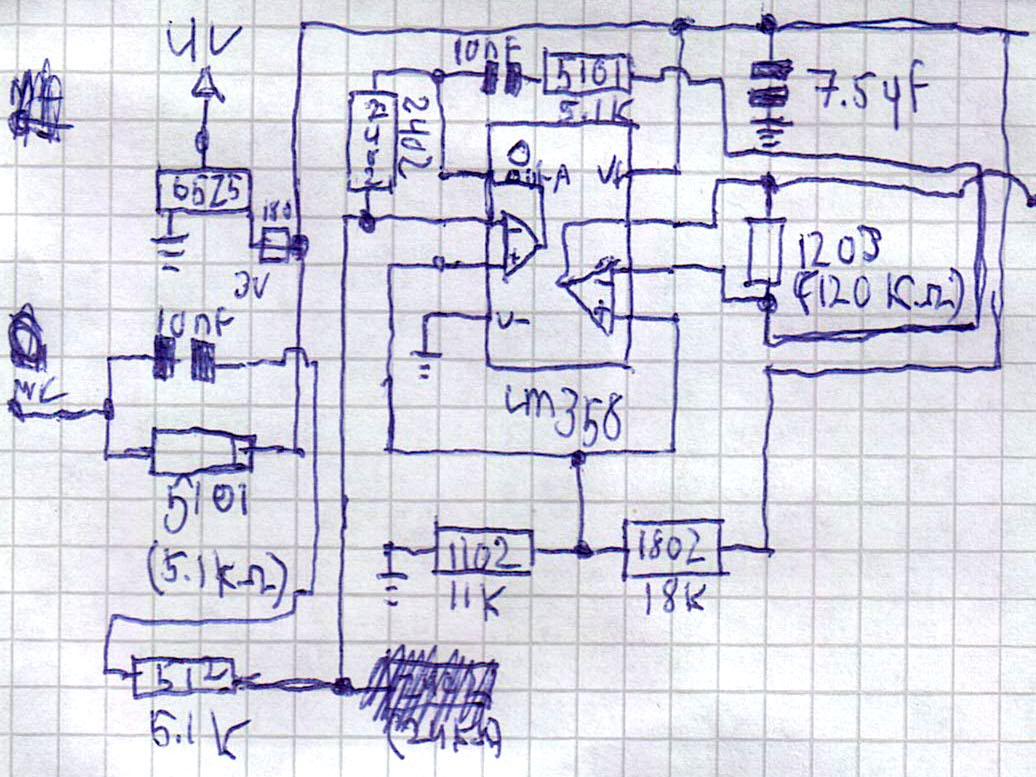

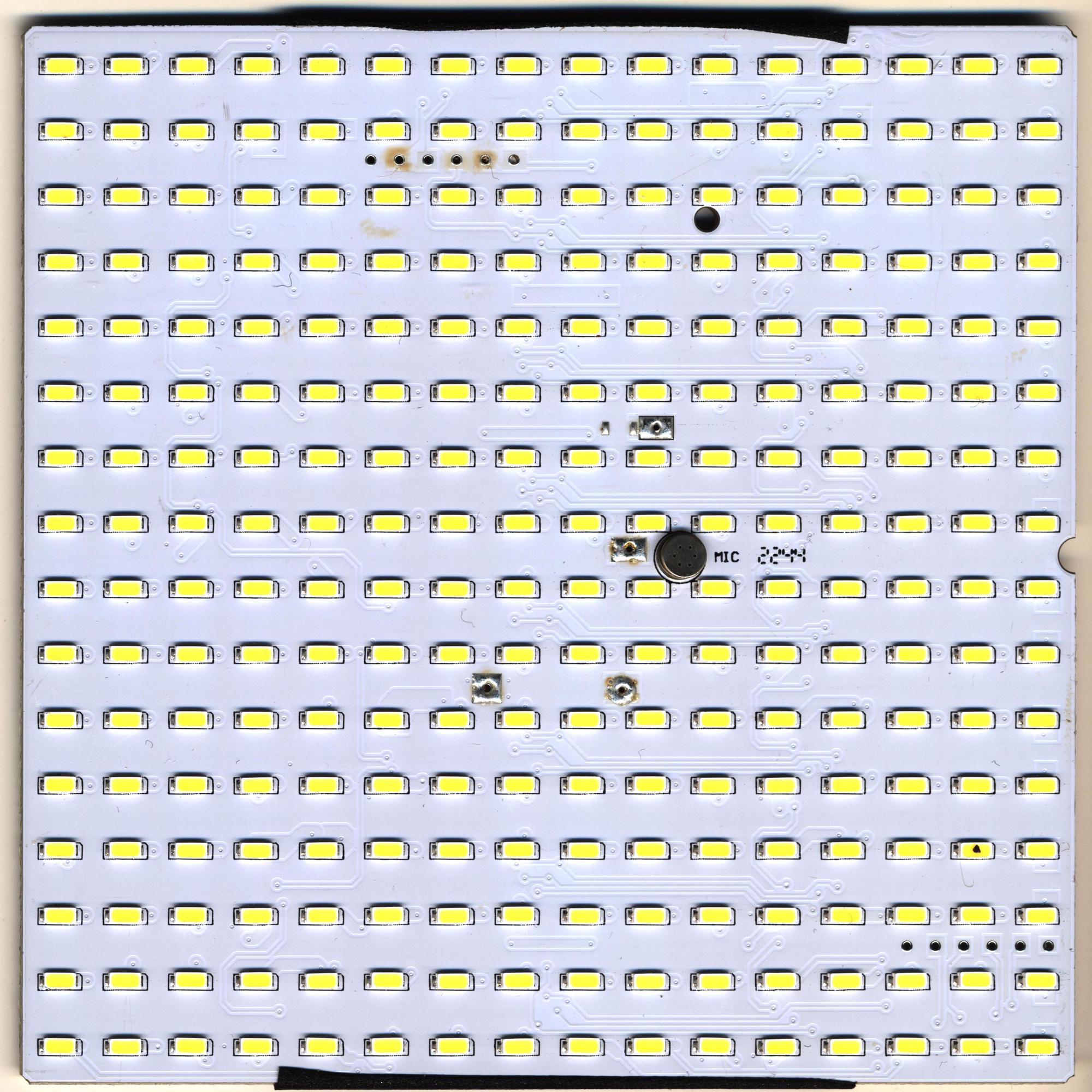

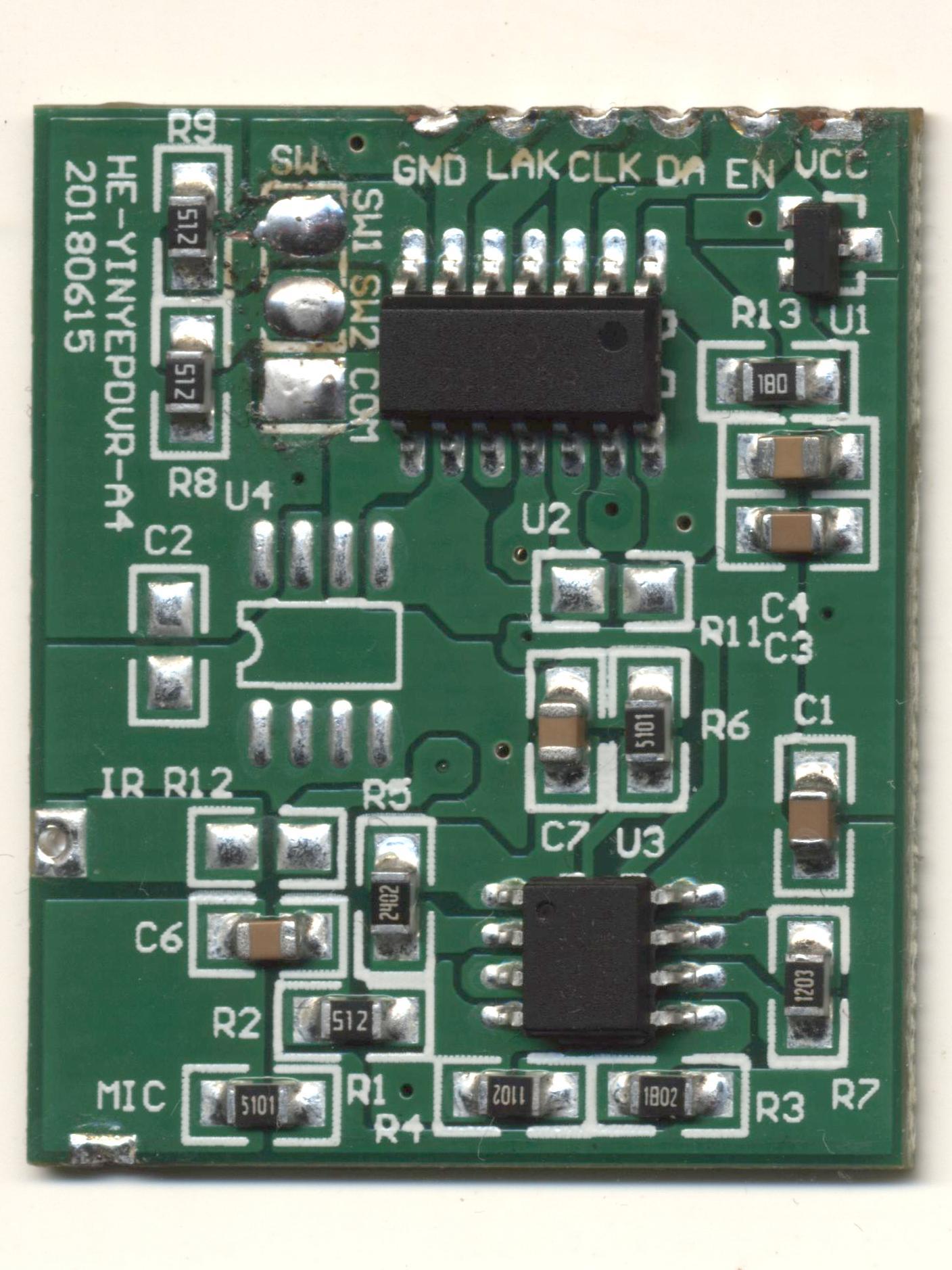

Scans and sketch of the original circuit:
Cleaner sketch to follow…

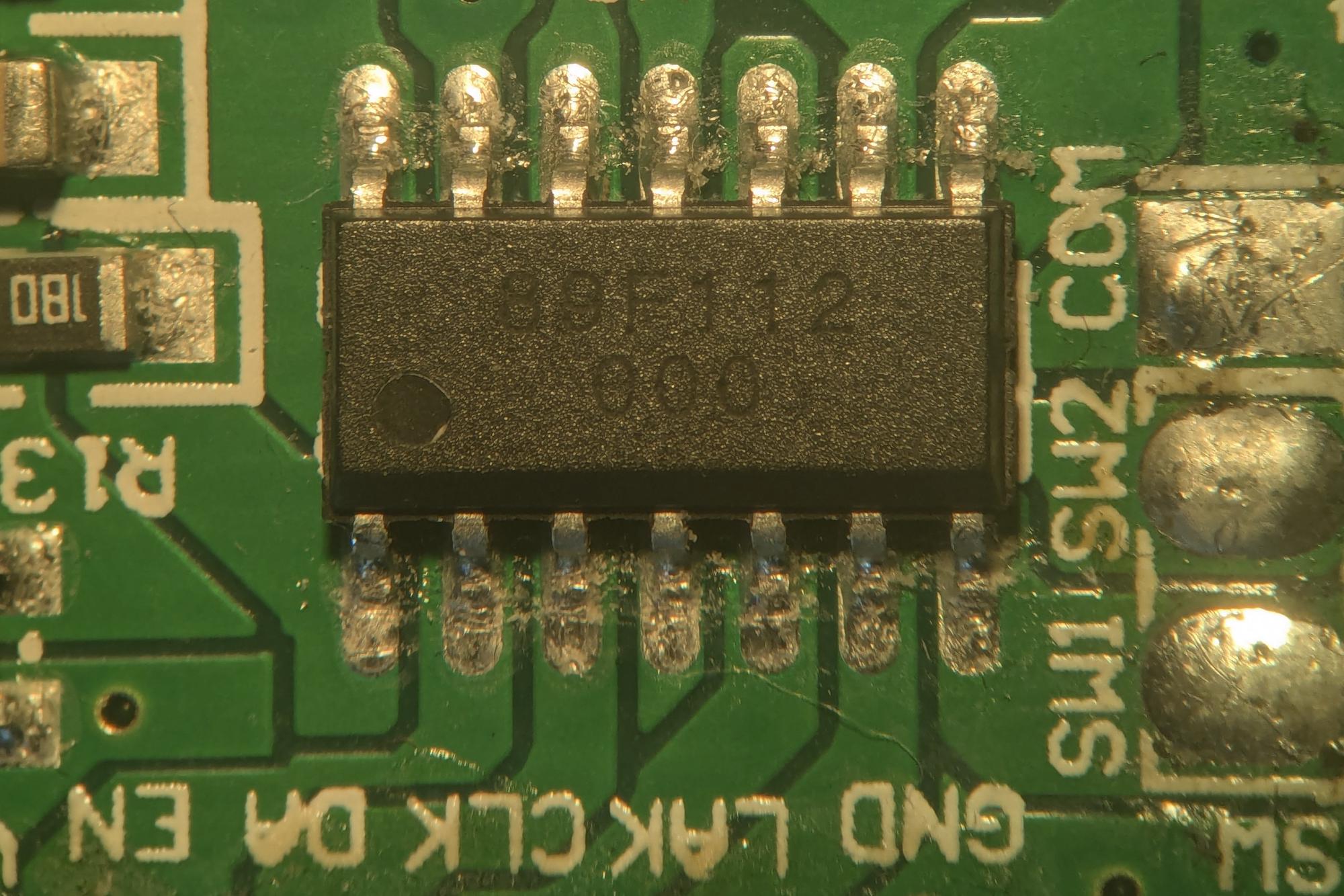

The MCU on the controllerboard has the markings 89F112 000, which appears to be the CMS89F112 from Cmsemicon.
It’s listed on jlc, for an estimated unit price of 0.3 USD. Hard to beat.
The datasheet is in chineese, but looks to have
A very capable little device. 144 bytes of RAM is not a lot, a bitfield for the LED matrix would take up 32 bytes, almost a quarter of memory. Still, that is absolutely enough for more complex or interesting effects on the matrix, like iterative or dynamic animations. My claim still stands: TE’s embedded developers dropped the ball on this one.
Complete RE of the original Frekvens controller and LED matrix board.

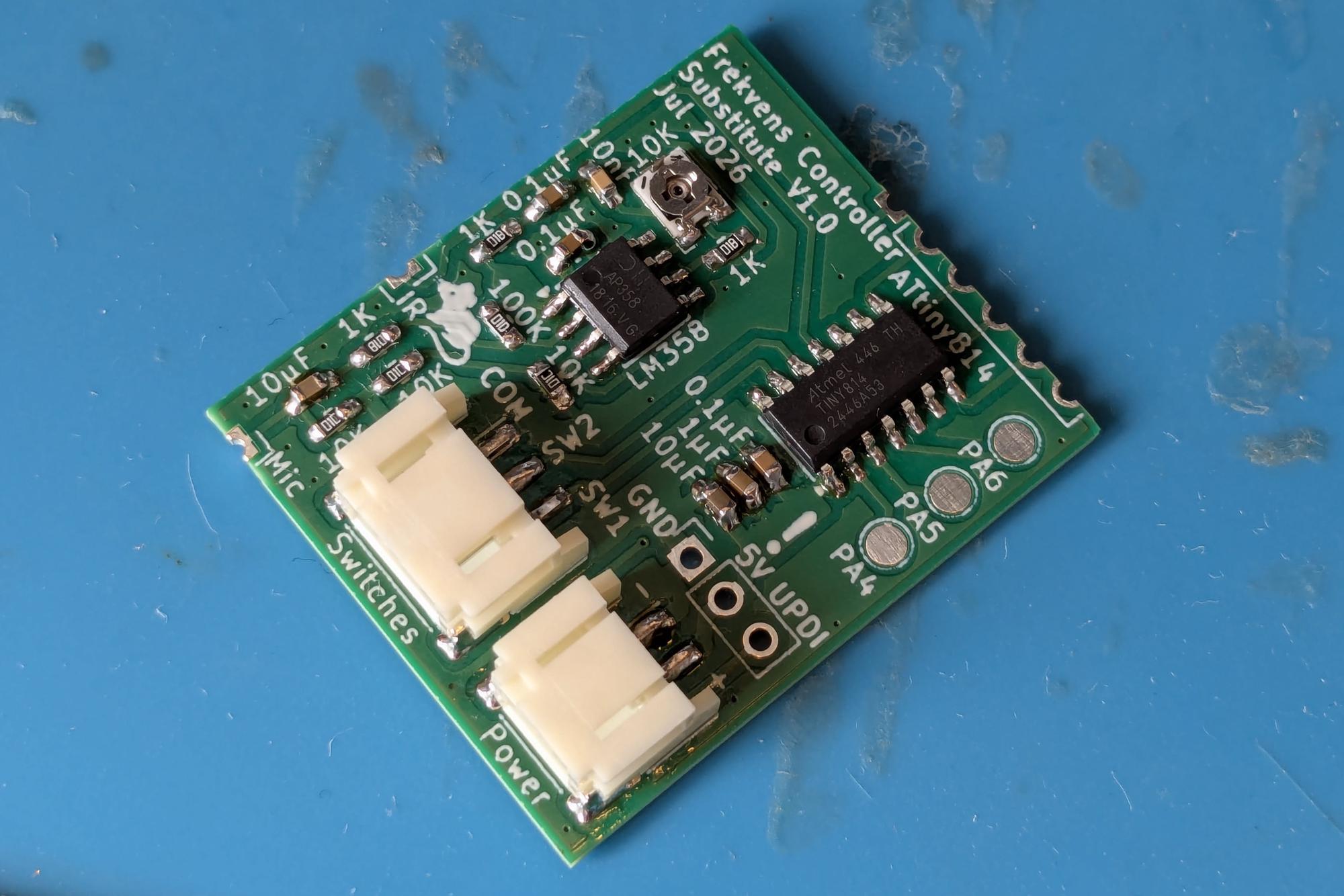

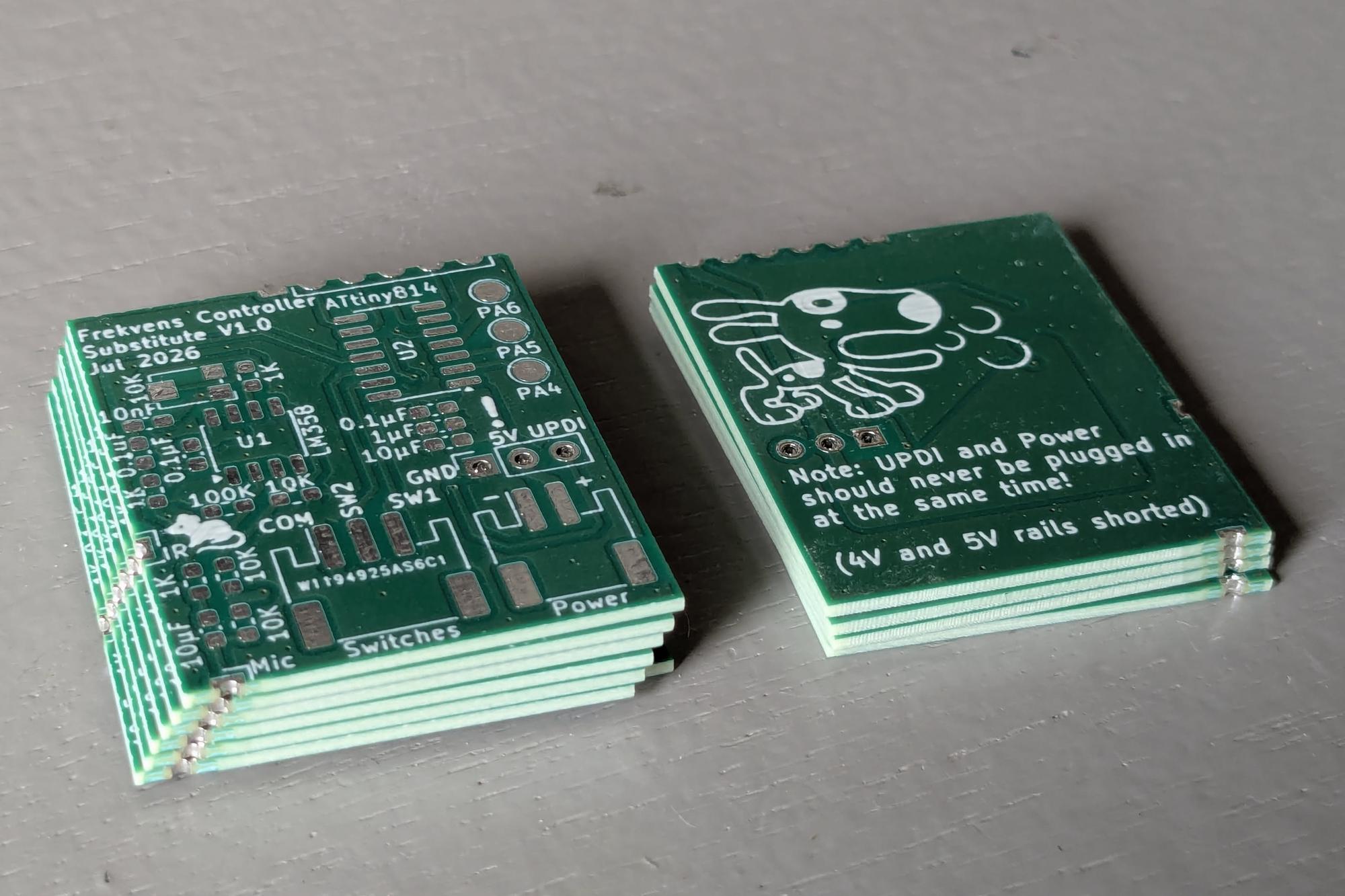

So anyways I started blasting redesigning.
